Ramsey Electronics  |  Varenr.: RA-STE2905M

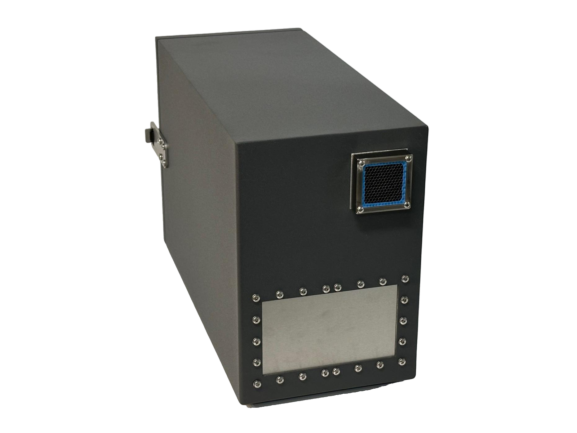

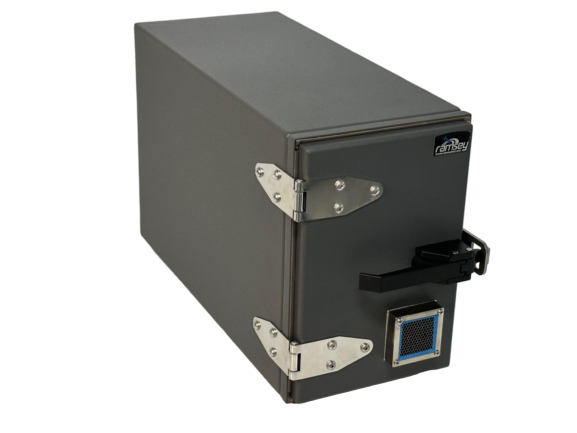

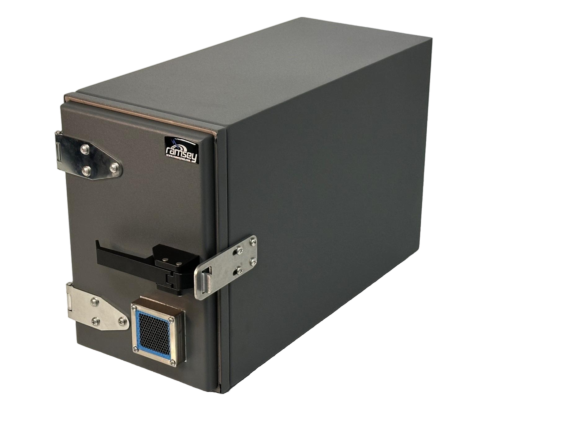

Ramseytest STE2905M RF-skjermet testkabinett

Kontakt oss for pris og tilgjengelighet.

Ramseytest STE2905M RF-skjermet testkabinett

Beskrivelse

STE2905M RF SHIELDED TEST ENCLOSURE

The STE2905M is a blank enclosure ready to be customized to match your specific RF testing requirements. Our Engineering team is available to assist you to make sure your custom enclosure is designed to meet your unique RF testing requirements. This enclosure does incorporate a 60mm passive ventilation system with optional 12 volt DC, 115 VAC, or 230VAC fans available. As with all of our enclosures, your custom I/O configuration is brought out to a precision machined I/O panel, giving you off the shelf delivery of your custom order.

  • Designed for a wide variety of RF testing functions determined by user customization.
  • Perfect for Wi-Fi 4, 5, 6, 6E (802.11a/b/g/n/ac/ax)
  • Wireless device testing
  • Bluetooth, RFID, 3G, 4G, 5G testing
  • Totally customizable with a wide variety of I/O options available

Isolation of an enclosure may vary depending on I/O or options selected in final configuration:

  • >95dB At 2.4GHz
  • >90dB At 5.8GHz
  • Included Interface Options: None
  • Included Power: None
  • Included Ventilation: 60MM Honeycomb Vents
  • I/O Plates Included 1
  • Loading Style: FRONT
  • Warranty: 1 YEAR
  • Category: BENCH TOP
  • Absorber/foam: 1/2" INSERTION LOSS
  • External Dimensions: 8.7"(W) X 20.6"(D) X 12.1"(H)
  • Internal Dimensions: 6.2"(W) X 16.8"(D) X 9.9"(H)
  • Shipping Dimensions:
  • Approx. Shipping Weight: N/A

Shielding Effectiveness (dB):

  • Isolation At 2.4GHz: >95dB
  • Isolation At 5.8GHz: >90dB

Features:

  • Designed for WLAN testing
  • Front loading swing away door
  • Dual ventilation or fan forced cooling
  • Exclusive double lip RF tight gasket
  • Universal I/O connector interface plate
  • RF absorbent foam liner
  • Optional security locking latch available

I/O Connectors:

  • None provided standard, customized to your specific requirements.
  • See options for off the shelf connectors/interfaces available.
  • Coaxial connectors: SMA, BNC, TNC, N, N to SMA, etc..
  • Digital interfaces: USB, Ethernet, Video, Serial, Audio, Fiber, etc..
  • Power filter interface: AC and DC
  • Power Strip Options: US, UK, European, France, Swiss, Italy, Israel, India, China, Australia, Multi Country Config, etc
  • Custom connection options can be sourced through our Engineering Team.
Metriske mål Lengde Bredde Høyde
Utvendige mål mm: 221 523 307
Innvendige mål mm: 157 427 251
Vekt: 4 kg
