Ramseytest STE2950M RF-skjermet testkabinett

STE2950M RF-SHIELDED TEST ENCLOSURE

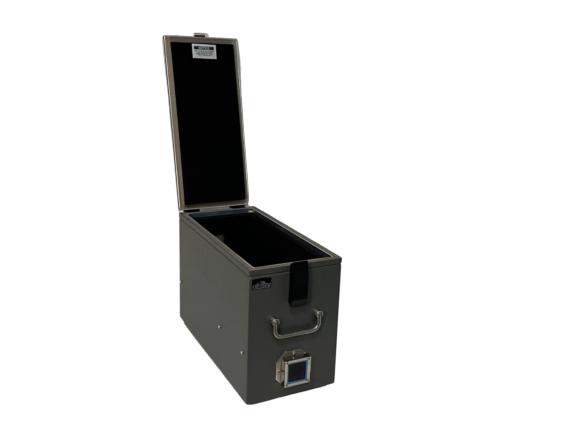

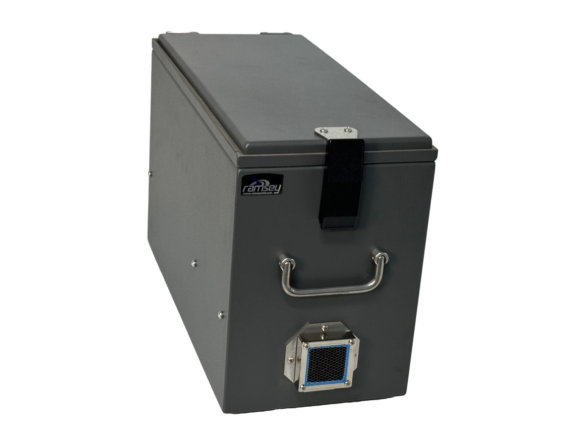

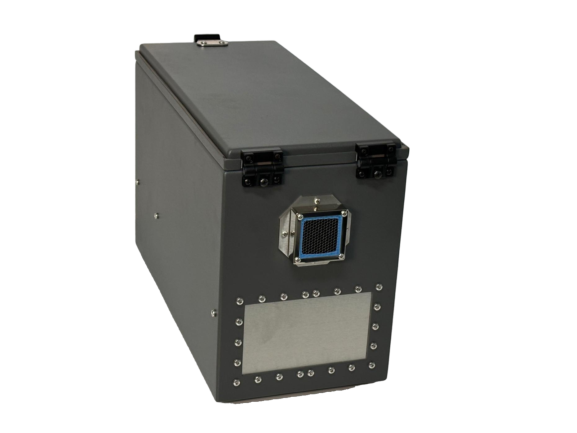

The "Top Loading version of the STE2900"! Also designed for individual bench top or dual rack mount installations, the STE2950M makes it simple to load and unload the device under test with its top load access door. To allow proper cooling of the DUT the STE2950M includes a built-in passive 60mm vent option. Optional forced-air fans can be ordered for additional cooling. Like other Ramsey STE's our universal I/O panel on the back wall is included and ready for your custom configuration to meet your application. Heavy duty, rugged .090 and .125 aluminum is used throughout and our double lip, high performance gaskets are used at all joint locations assuring a reliable RF tight closure. RF absorbent foam lines the interior to provide a typical RF attenuation of -95dB At 2.4GHz! If you are looking for an off-the-shelf RF enclosure system providing enough room to test any size wireless device, from Cellular phones to MIMO access points, you can count on the STE2950M to keep the device isolated.

• Designed for a wide variety of RF testing functions determined by user customization.
• Perfect for Wi-Fi 4, 5, 6, 6E (802.11a/b/g/n/ac/ax)
• Wireless device testing
• Bluetooth, RFID, 3G, 4G, 5G testing
• Totally customizable with a wide variety of I/O options available
• RF radiating test fixture models for absolute repeatability testing of wireless devices

Isolation of an enclosure may vary depending on I/O or options selected in final configuration:

• >95dB At 2.4GHz
• >90dB At 5.8GHz

Features:

• Easy top loading access and doors
• Designed for WLAN and MIMO testing
• 60MM ventilation or fan forced cooling
• Exclusive double lip RF tight gasket
• Universal I/O connector interface plate
• RF absorbent foam liner
• Optional security locking latch available
