Ramsey Electronics  |  Varenr.: RA-STE6000M

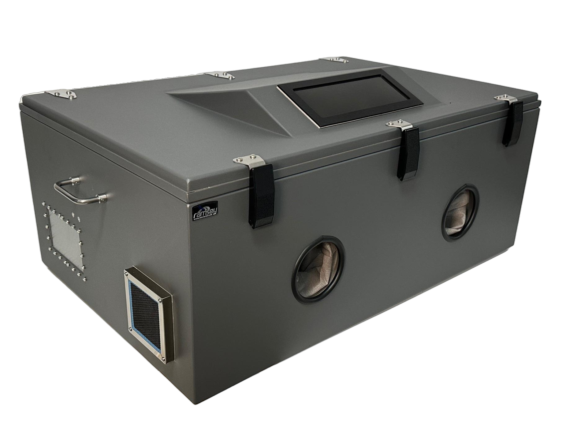

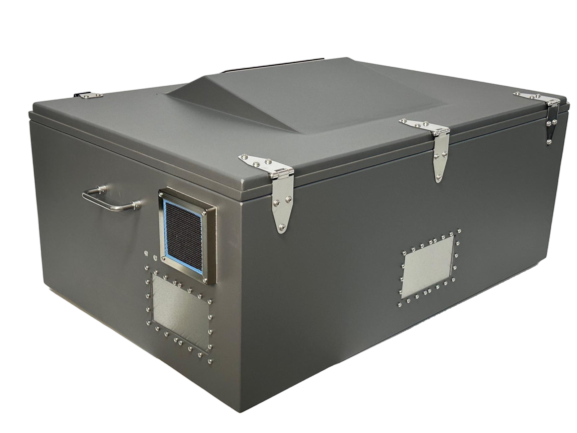

Ramseytest STE6000M RF-skjermet testkabinett

Ramseytest STE6000M RF-skjermet testkabinett Bestillingsvare. Ordre behandles og sendes så snart varen kommer til lager.

Kontakt oss for pris og tilgjengelighet.

Epost: post@faraday.no

Telefon: +47 9405 2825

Ramseytest STE6000M RF-skjermet testkabinett

Beskrivelse

RF SHIELDED TEST ENCLOSURE

INCLUDES THE FOLLOWING FEATURES:

  • 6 Outlet 230VAC Power Strip
  • 6 Pole Filtered Terminal Block feedthrough
  • RF tight viewing window
  • (2) ULTRA HIGH ISOLATION FLEXIBLE GLOVES GEN-3
  • Designed for a wide variety of RF testing, function/s determined by user customization.
  • Perfect for (Wi-Fi 4, 5, 6, 6E (802.11a/b/g/n/ac/ax)
  • Wireless device testing
  • Bluetooth, RFID, 3G, 4G, 5G testing
  • Totally customizable with a wide variety of I/O options available
The STE6000M is a blank enclosure ready to be customized to match your specific RF testing requirements. Our Engineering team is available to assist you to make sure your custom enclosure is designed to meet your unique RF testing requirements. This enclosure does incorporate a 120mm passive ventilation system with optional 12 volt DC, 115 VAC, or 230VAC fans available. As with all of our enclosures, your custom I/O configuration is brought out to a precision machined I/O panel, giving you off the shelf delivery of your custom order.


Features:

  • Designed for WLAN testing

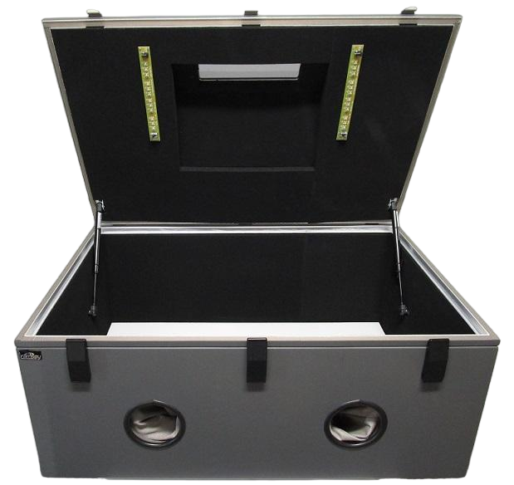

  • Top loading swing away door
  • Dual ventilation standard or fan forced cooling optional.
  • Exclusive double lip RF tight gasket
  • Universal I/O connector interface plate
  • Insertion Loss RF absorbent foam liner Standard
  • Reflection Loss solutions available
  • Optional security locking latch available

Key Features:

  • Included Interface Options: None
  • Included Power: 6 Outlet 230VAC Power Strip
  • Included Ventilation: 120MM Honeycomb Vents
  • I/O Plates Included: 3
  • Loading Style: TOP
  • Warranty: 1 YEAR
  • Category: BENC TOP
  • Absorber/foam: 3/4" INSERTION LOSS
  • External Dimensions: 37.5"(W) X 24.9"(D) X 17.4"(H)
  • Internal Dimensions: 34.2"(W) X 22.2"(D) X 12.6"(H)
  • Shipping Dimensions: Must Ship On A Pallet
  • Approx. Shipping Weight: 100lbs

Shielding Effectiveness (dB):

  • Isolation At 2.4GHz: >85dB
  • Isolation At 5.8GHz: >80dB



Lengde Bredde Høyde
Utvendige mål mm: 953 632 442
Innvendige mål mm: 869 564 320
Vekt: 45,4 kg
